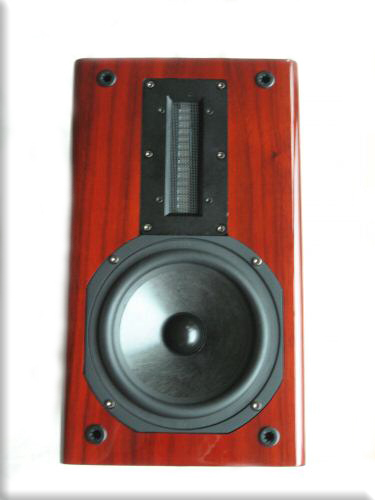

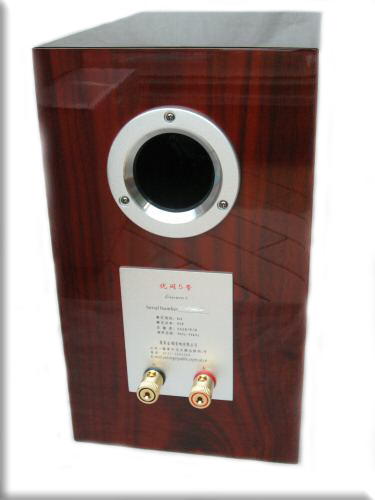

The design of the LEISURE 5MKII is a two way unit with a rear port. The tweeter is aluminium ribbon tweeter made of G3Si aluminium. and the mid-woofer is a AC-165 6.5 inches unit.
The cross-over design of the LEISURE 5 MKII is very precise with expensive MUNDORF supreme MKP capacitors. The inner connecting wire is made of SUPRA classic cable. The binding posts are made of of gold plated brass and are suitable for various loudspeaker cables with different ways of connecting.
The design of the LEISURE 5 MKII is very elegant and the whole of the cabinet is finished by hard PE paint after 14 times of manual polishing and a high speed burning process and then waxed to a high gloss paint surface. There is not a brand of loudspeakers with such a perfect finish in the whole world.
TECHNICAL DATA:
Design: 2-way, two units.
Frequency response: 48Hz-40KHZ
Impendance: 8 Ohms ( minimum is 6.4. Ohms)
Power Range: 50 W - 150 W is recommended
Tweeter: Model G3Si, aluminium ribbon tweeter , L. 100 x W. 8.5 x T. 0.01 mm , high power handling, high output.
Mid-woofer: Model AC-165, 6.5 inches/165 mm Non woven carbon fiber + kevlar cone 25 mm copper cover aluminium voice coil with flat wire , Y 30
ferrite magnet, long throw 2400 Hz.
woofer-12dB, tweeter - 18dB.
Frequency of crossover: High quality polypropylene capacitor, 5 N copper wire inductor, metal oxide film resistor.
Attenuation slope of crossover Ceramic resistor.
Finish: Rosewood, cherry wood and black high gloss paint (piano paint)
Dimensions: H x W x D: 40 x 24.6 x 30.2 cm
Weight: 12 kg/piece.
